Topcon ES-105 Reflectorless (pre-owend)

$5,500.00
Ex Tax: $5,500.00
Price in reward points: 400

Brand: Topcon
Product Code: ES-105
Reward Points: 100
Availability: In Stock

0 reviews | Write a review

Qty: + -

Add to Wish List Add to Compare

Description Reviews (0)

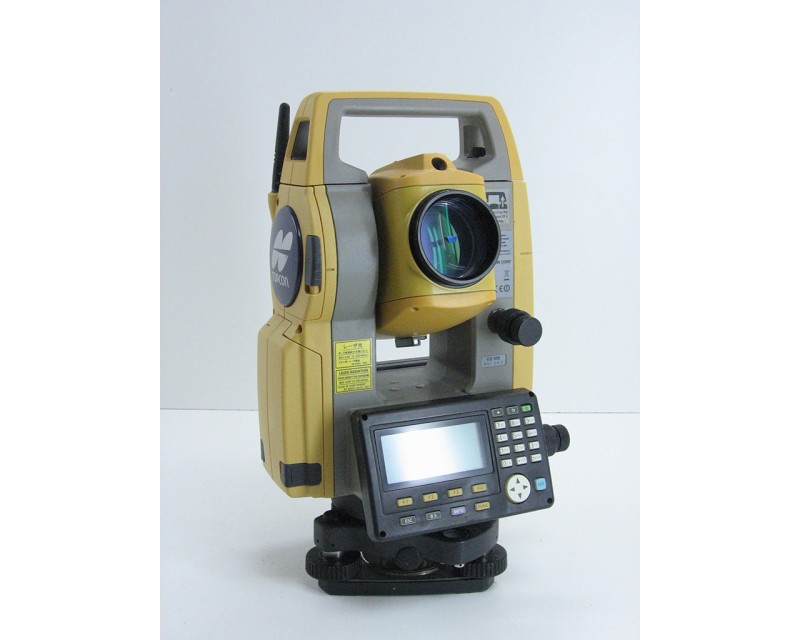

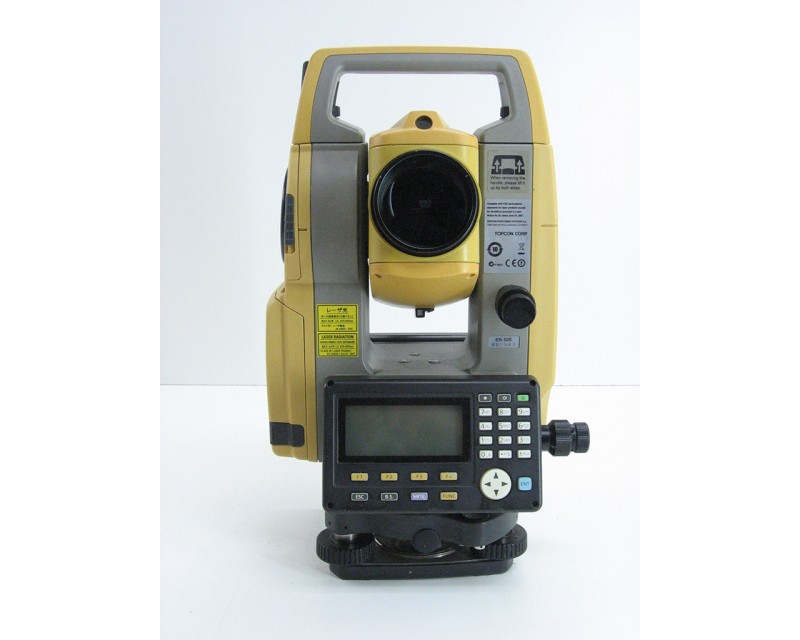

Topcon ES-105 Reflectorless Total Stations (pre-owend)

Topcon’s ES Series Total Stations

The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

The exclusive LongLink™ communications functionality in every ES Series model provides operational capabilities never before offered in a manual total station. With a 300m range wireless communication using Bluetooth Class 1 technology, you can now operate the data collector from the “smart-spot” of the crew, the prism pole. Also referred to the two-man, economical robot solution, Topcon’s new LongLink™ technology brings a whole new level of flexibility to your manual field crew.

Ultimate in Rechargeable operation - 36 Hours!

Up to 36 hours of operation on a single charge.*¹
Eliminates the need for nightly recharging and carrying extra batteries.
Work with confidence all day without the worry of dead batteries.

Rugged, Waterproof Design

Waterproof/Dustproof IP66 design handles the toughest environments
Magnesium-alloy housing providing stable angle accuracy Completely

Easy Access USB 2.0 Memory

Up to 8MB storage
Environmentally protected
Compatible with industry standard accessories and cables

Ultra-Powerful, Advanced EDM

500m non-prism range
4000m prism range
Less than 1 second fine measurement

Angle Measurement
	Min. Resolution/Accuracy
ES-101	0.5”/1”
ES-102	1”/2”
ES-103	1”/3”
ES-105	1”/5”
ES-107	1”/7”
IACS (Independent Angle	Standard on 1” & 2” models
Calibration System)
Compensation	Dual-axis compensator

Distance Measurement
Prism EDM Range	4000m (ES-107 3000m)
Prism EDM Accuracy	2mm+2ppm
Non-Prism Range	500m
Non-Prism Accuracy	3mm+2ppm (0.3-200m)
Measuring Time	Fine: 0.9 sec
	Rapid: 0.7 sec
	Tracking: 0.3 sec

Communications
LongLink™ rover communications utilizing
Bluetooth® Class 1
USB 2.0 Slot (Host + Slave)
RS-232C Serial

General
Display/Keyboard	Dual LCD Touchscreen
	(ES-107 Single Display)
Battery Operation	Up to 36 hours
Dust/Water Protection	IP66
Wireless Connection	Bluetooth® Class 1
Operating Range	-20ºC to +60ºC*
	*Special Arctic version
	available (-30 to +50ºC)
