NIKON DTM-521

AUCTION INCLUDES:

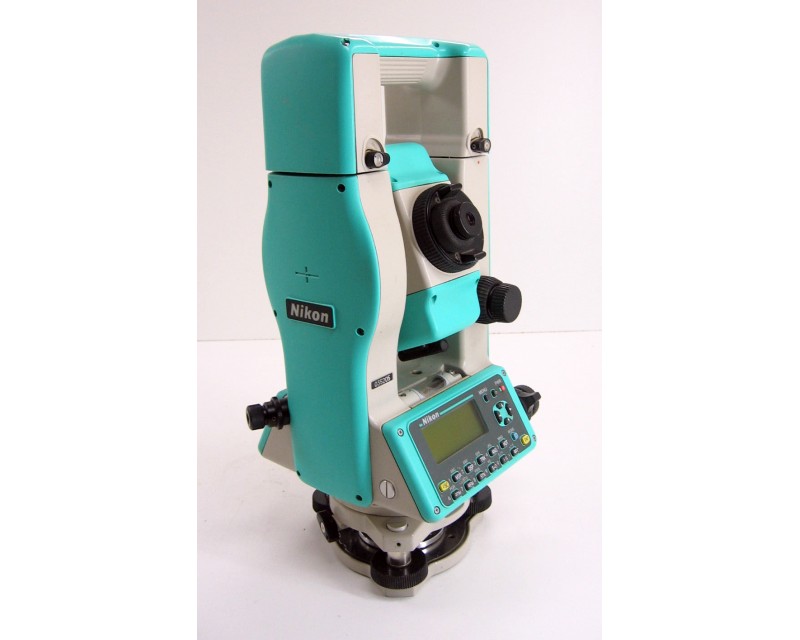

1. DTM-521 Total Station
2. Nikon Hard case
3. Nikon tribrach
4. 2X BC-80 Handle battery
5. Charger Q-70U

SPECIFICATION:

1. Magnification: 30X
2. Image: erect
3. Distance measurement: 1 Prism: 6600’, 3Prism: 9800’
4. Least count in measurement: Single/Repeat meas. mode: 0.005’
5. Tracking/Coarse meas. mode: 0.02’/0.005’
6. Measurement Display: 8 digit: max. Display 99999.999m
7. Measurement Time: Repeat Measurement mode: 2.5 sec.
8. Tracking/coarse Measurement mode: 0.5 sec.
9. Electronic Angle Measurement: V & H angle
10. Angle accuracy: 3”
11. Measurement time: Less than 0.3 sec.
12. Internal memory: surveying data + coordinates data total 8000 points
13. Data input/output: RS-232C compatible, asynchronous serial
14. Optical plummet: Erect 3x
15. Tilt sensor: Liquid type
16. Compensating range: +/- 3’
17. Handle battery BC-80: output voltage: 7.2 v, capacity: 2.4 ah, max.
18. Weight: 10.8lbs
19. Angle Measurement only: 12 hours
20. Normal use: 13.5 hours
