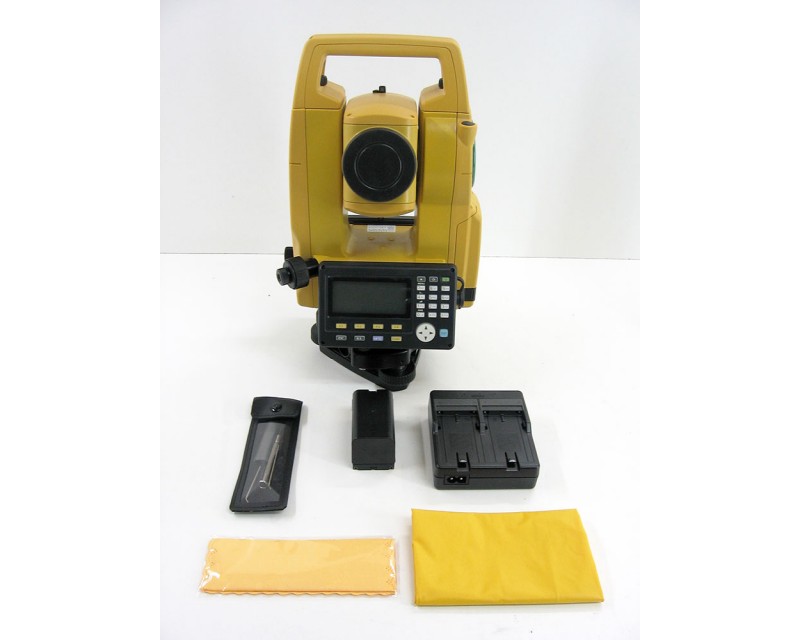

Topcon GTS-1002 Reflectorless
$4,200.00
Ex Tax: $4,200.00
Price in reward points: 400
Ex Tax: $4,200.00
Price in reward points: 400
Qty:
+
-
Topcon GTS-1002 Reflectorless Total Stations
Magnification/Resolving power | 30X/2.5" | ||||||||
Length: 150mm, Objective aperture: 45mm (EDM:48mm), | |||||||||
Other | Image: Erect, Field of view: 1°30' (26m/1,000m), | ||||||||
Minimum focus: 1.3m | |||||||||
Angle measurement | |||||||||
Display resolutions | 1"/5" | ||||||||
Accuracy (ISO 17123-3:2001) | 2'' | ||||||||
Method | Absolute | ||||||||
Compensator | Dual-axis liquid tilt sensor, working range: ±6′ | ||||||||
Distance measurement | |||||||||
Laser output level | Non prism: | 3R Prism/ Reflector 1 | |||||||
Measuring range | |||||||||
(under average conditions *1 ) | |||||||||
Reflectorless | 0.3 ~ 350m | ||||||||
RS90N-K:1.3 ~ 500m | |||||||||
Reflector | RS50N-K:1.3 ~ 300m | ||||||||
RS10N-K:1.3 ~ 100m | |||||||||
Mini prism | 1.3 ~ 500m | ||||||||
One prism | 1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m | ||||||||
Accuracy | Reflectorless | (3+2ppm×D)mm | |||||||
Reflector | (3+2ppm×D)mm | ||||||||
Prism | (2+2ppm×D)mm | ||||||||
Measurement time | Fine: 1mm: 0.9s Coarse: 0.7s, Tracking: 0.3s | ||||||||
Interface and Data management | |||||||||
Display/keyboard | Adjustable contrast, backlit LCD graphic display / | ||||||||
With backlit 25 key (alphanumeric keyboard) | |||||||||
Control panel location | On both faces | ||||||||
Data storage | |||||||||
Internal memory | 10,000pts. | ||||||||
External memory | USB flash drives (maximum 8GB) | ||||||||
Interface | RS-232C; USB2.0 | ||||||||
General | |||||||||
laser Designator | Coaxial red laser | ||||||||
Levels | Circular level | ±6′ | |||||||
Plate level | 10′ /2mm | ||||||||
Optical plummet telescope | Magnification: 3x, Focusing range: 0.3m to infinity, | ||||||||
Dust and water protection | IP66 | ||||||||
Operating temperature | -20 ~ +60℃ | ||||||||
Size | 191mm(W)×181mm(L)×348mm(H) | ||||||||
Weight | 5.6kg | ||||||||
Power supply | |||||||||
Battery | BT-L2 lithium battery | ||||||||
Working time | 25 hours |
